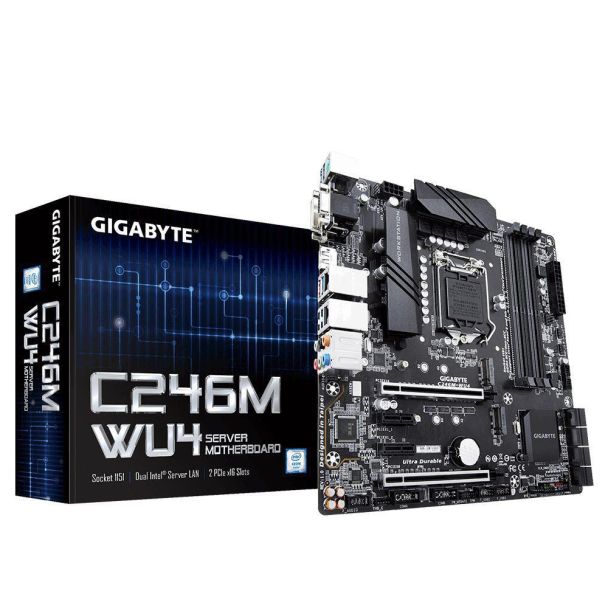

PL Mae Gigabyte C246M-WU4 (XeonLGA1151/DDR4ECC/DVI/D-Sub/DP)

PROCESSADORES SUPORTADOS:

Intel Xeon E-2000 Series

PROCESSADORES COMPATÍVEIS:

053644-3 - BX80684E2274G QUAD CORE E2274G 4,00GHZ 8MB LGA 1151

053648-9 - BX80684E2124G QUAD CORE E2124G 4,50GHZ 8MB LGA1151

053647-5 - BX80684E2146G HEXA CORE E2146G 4,50GHZ 12MB LGA1151

053646-1 - BX80684E2176G HEXA CORE E2176G 3,70GHZ 12MB LGA1151

053616-2 - BX80684E2226G HEXA CORE E2226G 3.40GHZ 12MB LGA1151

CHIPSET:

Intel C246 Express Chipset

MEMÓRIA:

4 x sockets DIMM DDR4 2666/ 2400/2133 Mhz

Suporta até 128GB

ECC Un-Buffered DIMM

non-ECC Un-Buffered DIMM

MEMÓRIAS ECC COMPATÍVEIS:

051313-2 - KSM24ES8/8ME 8GB 2400MHZ ECC CL17 DIMM 1RX8 MICRON

051935-8 - KSM24ED8/16ME 16GB 2400MHZ ECC CL17 DIMM 1RX8 MICRON

GRÁFICOS ONBOARD:

1 x VGA

1 x DVI-D

1 x DisplayPort

ÁUDIO:

Realtek ALC892

REDE:

2 x Intel GbE LAN chips (10/100/1000 Mbit)

SLOTS DE EXPANSÃO:

1 x PCI Express x16, rodando a x16

1 x PCI Express x16, rodando a x8

2 x PCI Express x1

ARMAZENAMENTO:

8 x SATA 3 - RAID 0, RAID 1, RAID 5 E RAID 10

1 x M.2 (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M)

1 x M.2 (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A)

USB:

1 x USB 3.1 Gen 2 Type-A port (Vermelho) no painel traseiro.

7 x USB 3.1 Gen 1 ports (5 portas no painel traseiro. 2 portas disponivel através de conector INTERNO)

4 x USB 2.0/1.1 portas disponivel através de conector INTERNO

CONECTORES INTERNOS I/O:

1 x 24-pin ATX main power

1 x 8-pin ATX 12V power

2 x M.2 Socket

8 x SATA 6Gb/s

1 x CPU fan

3 x system fan

1 x front panel

1 x front panel audio

1 x USB 3.1 Gen

2 x USB 2.0/1.1

1 x S/PDIF Out

1 x Thunderbolt add-in card connector

1 x Trusted Platform Module (TPM)

2 x serial port

1 x Clear CMOS jumper

CONECTORES TRASEIROS:

1 x PS/2

1 x D-Sub

1 x DVI-D

1 x DisplayPort

1 x USB 3.1 Gen 2 Type-A porta (vermelho)

5 x USB 3.1 Gen 1 portas

2 x RJ-45 portas

6 x audio jacks

PADRÃO:

Micro ATX Form Factor 24.4cm x 24.4cm
