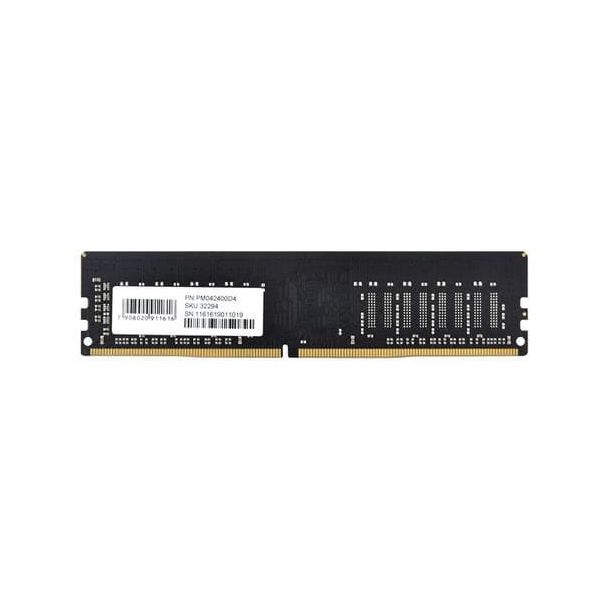

Memória Afox 4GB DDR4 2400Mhz DIMM - PN # AFLD44EN1P

• JEDEC Standard

• DDR4 Speed Grade : 2400 Mbps

• Unbuffered DIMM : 288-pin

• 16 internal banks; 4 groups of 4 banks each

• Memory Organization : x8 FBGA DRAM chip

• CAS latency : CL17

• Bandwidth : 17000MB/s

• Data bus inversion (DBI) for data bus

• VDD voltage : 1.2V

• VDDQ voltage : 1.2V

• VPP voltage: 2.5V

• Serial presence detect with EEPROM

• PCB height : 1.23 inch (31.25mm)

• RoHS Compliant

Model Specification - 4GB DDR4 2400 Long DIMM

Working Voltage - 1.2V

CL - 17 cycles

Row Cycle Time (tRCmin) - 46.5ns (min.)

Refresh to Active/Refresh

Command Time (tRFCmin)

260ns (min.) -

Row Active Time (tRASmin) - 33ns (min.)

Maximum Operating Power - TBD W*

UL Rating - 94V - 0

Operating Temperature - 0? - +85?

Storage Temperature - -55? - +100?
