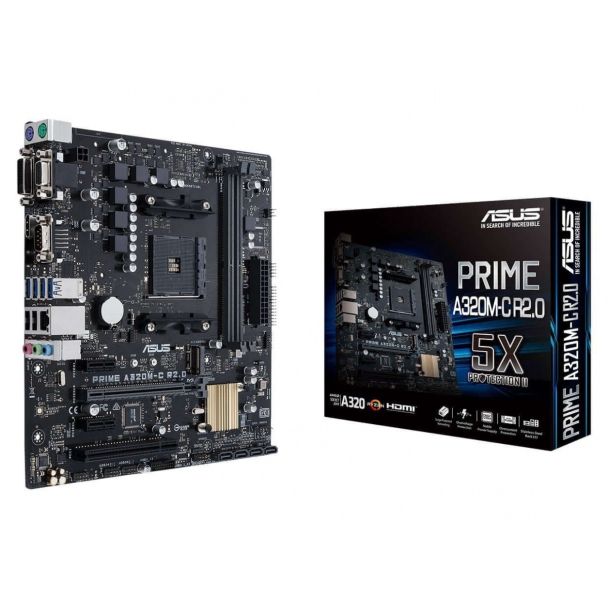

Placa Mãe Asus# Prime A320M-C AM4/DDR4/HDMI/DVI/M2/mATX - PN # PRIME A320M-C

Marca: ASUS

Modelo: PRIME A320M-C R2.0

Processador:

Socket AM4: AMD Ryzen (Primeira e Segunda Geração) AMD Ryzen™/7th Generation A-series/Athlon™ Processadores

Suporta CPU em até 8 cores

Chipset: AMD A320 - Já vem com bios atualizada para RYZEN 2200G/2400G/2600/2600X/2700/2700X

Memória

AMD Ryzen:

2 x DIMM, máximo de 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz

7ª Geração AMD A-series/Athlon™:

2 x DIMM, máximo de 32GB, DDR4 2400/2133 MHz

Arquitetura de memória: Dois canais

Gráficos

Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU

Saída Multi-VGA: portas HDMI/DVI-D/RGB

Suporta HDMI 1.4b com resolução máxima de 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

Suporta DVI-D com resolução máxima de 1920 x 1200 @ 60 Hz

Suporta RGB com resolução máxima 1920 x 1200 @ 60 Hz

Máximo de memória compartilhada 2048 MB

Armazenamento

AMD A320 chipset:

4 x SATA 6Gb/s

Suporta Raid 0, 1, 10

AMD Ryzen:

1 x M.2 Socket 3, com M key, type 2242/2260/2280 (SATA & PCIE 3.0 x 4 mode)

AMD 7th Generation A-series/Athlon:

1 x M.2 Socket 3, com M key, type 2242/2260/2280 (SATA mode)

LAN

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Áudio

Realtek® ALC887 8-Channel High Definition Audio CODEC

Portas USB

4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)

2 x USB 3.1 Gen 1 port(s) (2 at mid-board)

6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

Sistema operacional suportado

Windows 10 64bit

Portas no painel Traseiro

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x DVI-D

1 x D-Sub

1 x HDMI

1 x LAN (RJ45) port(s)

4 x USB 3.1 Gen 1 (blue)

2 x USB 2.0

1 x COM port(s)

3 x Audio jack(s)

Painel Interno

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x LPT header

1 x COM port(s) connector(s)

4 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x Chassis Fan connector(s) (1 x 4 -pin)

1 x 24-pin EATX Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Clear CMOS jumper(s)

1 x 14-1 pin TPM connector

1 x Chassis intrusion header

1 x Speaker connector

Formato

Modelo mATX

Tamanho

Dimensões: 24.4 cm x 23.6 cm
